Sentry-X2 Mini Rugged System Powered by NVIDIA® Jetson Orin™ NX
More Information

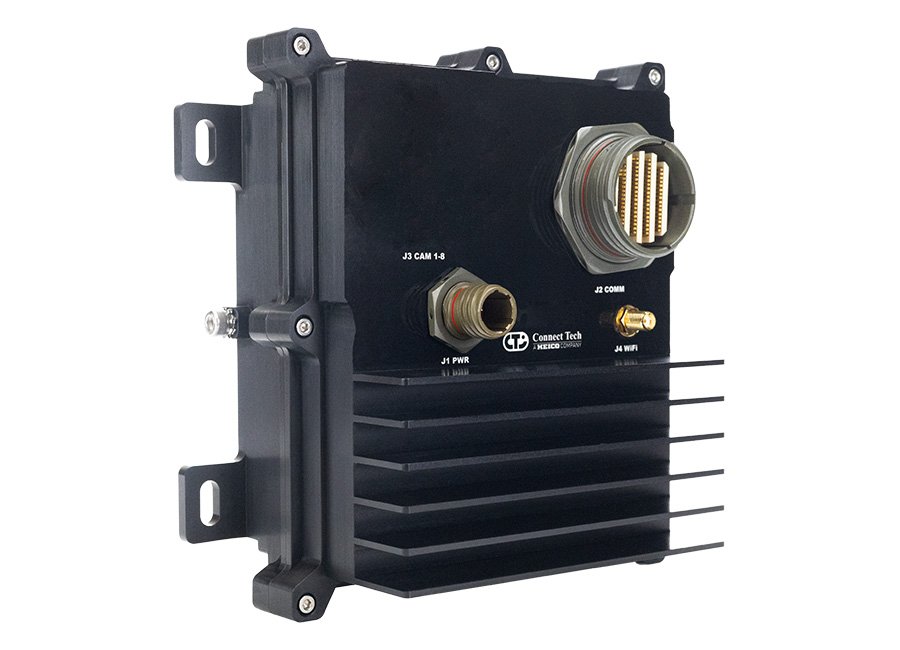

Sentry-X2 Mini is a MIL-Rugged system, powered by the NVIDIA® Jetson Orin™ NX 16GB module.
Designed for mission critical applications in harsh environments, Sentry-X2 Mini is a MIL-SPEC certified AI system designed for computing at the tactical Edge. Powered by the NVIDIA® Jetson Orin™ NX 16GB, the Sentry-X2 Mini delivers a compact, deployment-ready form factor purpose-built for aerospace and defense autonomous applications, from uncrewed systems and ISR platforms to autonomous ground vehicles and airborne payloads.
Tested to MIL-STD specifications for shock and vibration and utilizing IP67 rated D38999 connectors for data integrity, Sentry-X2 Mini is designed to meet the strict requirements of military, aerospace, and heavy industrial applications.
Specifications
| Module Compatibility | Pre-integrated with NVIDIA® Jetson Orin™ NX 16GB |
|---|---|
| GPU | 1024-core NVIDIA® Ampere architecture GPU with 32 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Memory | 16GB 128-bit LPDDR5 102.4GB/s |
| Dimensions | 170mm x 172mm x 87mm (6.69" x 6.77" x 3.43") |
| USB | 2x USB 3.2 Ports (10Gbps Capable) |
| Networking | 1x 1000BASE-T Ethernet (1GbE) |
| Storage | 1x M.2 M Key (Up to 4TB NVMe) |
| Wireless Expansion | 1x M.2 E Key Wi-Fi/BT (optional) |
| Video Output | 1x DisplayPort 1.4 Output 4K @ 60HZ |
| Misc I/O | 5x 3v3 GPIO (1x PWM capable) |
| CAN | 1x Non-Isolated CAN 2.0b |
| RTC Battery | SuperCap (No Battery Installed) |
| Trusted Platform Module (TPM) | SLB9670 TPM2.0 Chipset |
| Input Power / Misc Power Details | – MIL-STD-704F Input Power +28V Nominal Operating Voltage (+16V to +50V Range as specified by MIL-STD-704F) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Weight | 1.5 kg (3.3 lb) |
| Designed to MIL Specifications | Environmental: MIL-STD-810H, DO-160H |
| Warranty and Support | 1 Year Warranty and Free Technical Support |
Ordering Information
| Integrated Assemblies | |
|---|---|
| Part Number | Description |
| ESG650-001 | Sentry-X2 Mini Embedded System integrated with NVIDIA® Jetson NX Orin™ 16GB Module with Passive Cooling, WIFI 6E, 2 TB NVMe |
| ESG650-002 | Sentry-X2 Mini Embedded System integrated with NVIDIA® Jetson NX Orin™ 16GB Module with Passive Cooling, 2 TB NVMe |
| Cables/Accessories | |
|---|---|
| Part Number | Description |
| ADG121 | Meritec 38999 Development Breakout PCB (ESG633/ESG650) |
| CBG741 | Power Cable Flying Lead |
| CBG745 | 1 Meter 38999 Meritec Cable |
| CKG074 | Sentry-X2 Mini (ESG650) Cable Kit: • 1x CBG741 Power Cable Flying Lead • 1x CBG745 1 Meter 38999 Meritec Cable • 1x ADG121 Meritec 38999 Development Breakout PCB (ESG633/ESG650) |
| MSG093 | Wi-Fi/BT Development Antenna |
| MSG127 | Development AC/DC Power Supply with MIL-38999 Adapter Cable (ESG650) |
