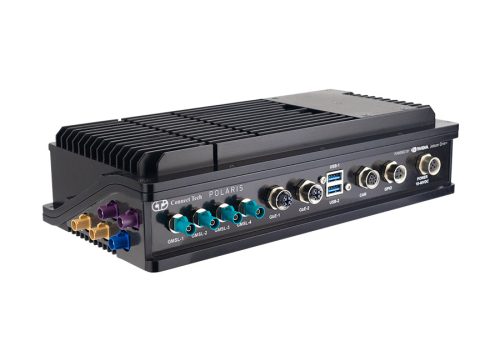

Polaris Embedded System with NVIDIA® Jetson Orin™ NX
More Information
Harnessing the Jetson Orin™ NX and built for robotics, smart city and autonomous machines, the rugged Polaris system provides a wide range of connectivity in an IP67 rated rugged package.
Polaris is ideal for deployable computer vision and deep learning applications in rugged environments
Specifications
| GPU Module Options | NVIDIA® Jetson Orin™ Nano, NVIDIA® Jetson Orin™ NX |
|---|---|
| Network | 1x Gigabit Ethernet (RJ45), 2x Gigabit Ethernet (M12 X-Code) |
| Wireless Expansion | 1x WiFi Module (M.2 2230 E-KEY) |
| Display | 1x HDMI |
| Camera Inputs | 4x FAKRA SMB Plug Z-code, GMSL cameras |
| USB | 1x USB OTG (Micro-AB), 3x USB 3.1 Ports (Type-C) |
| UART | 1x USB based Debug UART (USB micro AB connector) |
| Storage | 1x M.2 Key-M (NVMe) slot (4-lane PCIe Gen 3/4) |
| CAN | 2x CAN FD Isolated Ports (M12 A-Code) |
| GPIO | 1x 12V output (100mA max, isolated M-12, D-Code), 2x 3.3V input (12V tolerant, Isolated M-12, D-Code) |
| Fan | 2x 12V BLDC Fans with Tachometer and PWM speed control |
| Other | 1x CR2032 RTC battery holder |
| Input Power | +18-48V DC Wide Input Power (M12 B-Code) |
| Dimensions | 285mm x 150mm x 70mm (11.22inch x 5.91inch x 2.76inch) |
| Weight | 2.5kg (5.5 lbs) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) (14.4CFM is needed to operate higher than 35°C or 95°F) |
Downloads
Jetson Orin NX
| Package Info | Board Support Package | Release Notes | Date Last Updated |
|---|---|---|---|
| JetPack 6.2 – L4T r36.4.3 | Orin NX / Nano L4T r36.4.3 BSP | Orin NX / Nano L4T r36.4.3 Release Notes | 21-Mar-25 |
| JetPack 6.1 – L4T r36.4.0 | Orin NX / Nano L4T r36.4.0 BSP | Orin NX / Nano L4T r36.4.0 Release Notes | 28-Jan-25 |
| JetPack 6 – L4T r36.3.0 | Orin NX / Nano L4T r36.3.0 BSP | Orin NX / Nano L4T r36.3.0 Release Notes | 20-Sept-24 |
| JetPack 5.1.4 – L4T r35.6.0 | Orin NX / Nano L4T r35.6.0 BSP | Orin NX / Nano L4T r35.6.0 Release Notes | 14-Apr-25 |
| JetPack 5.1.3 – L4T r35.5.0 | Orin NX / Nano L4T r35.5.0 BSP | Orin NX / Nano L4T r35.5.0 Release Notes | 26-Sept-24 |
| JetPack 5.1.2 – L4T r35.4.1 | Orin NX / Nano L4T r35.4.1 BSP | Orin NX / Nano L4T r35.4.1 Release Notes | 27-Jun-24 |
| JetPack 5.1.1 – L4T r35.3.1 | Orin NX / Nano L4T r35.3.1 BSP | Orin NX / Nano L4T r35.3.1 Release Notes | 21-Aug-23 |
| JetPack 5.1.0 – L4T r35.2.1 (Orin NX Only) | Orin NX L4T r35.2.1 BSP | Orin NX L4T r35.2.1 Release Notes | 20-Mar-23 |
Ordering Information
| Main Products | |
|---|---|
| Part Number | Description |
| ESG604 | Polaris Embedded Active System with NVIDIA Jetson Orin™ NX 16GB |
| ESG608 | Polaris Embedded Passive System with NVIDIA Jetson Orin™ NX 16GB |
| Integrated Assemblies | ||||
|---|---|---|---|---|
| Part Number | Cooling | WiFi/Bluetooth Option | Storage Option | LTE Option |
| ESG604-1C | Active Cooling | N/A | 2TB NVMe SSD | N/A |
| ESG604-1E | Active Cooling | WiFi6/BT Module | 2TB NVMe SSD | N/A |
| ESG604-22 | Active Cooling | N/A | 2TB NVMe SSD | Quectel 5G Global LTE |
| ESG604-24 | Active Cooling | WiFi6/BT Module | 2TB NVMe SSD | Quectel 5G Global LTE |
| ESG608-1C | Passive Cooling | N/A | 2TB NVMe SSD | N/A |
| ESG608-1E | Passive Cooling | WiFi6/BT Module | 2TB NVMe SSD | N/A |
| ESG608-22 | Passive Cooling | N/A | 2TB NVMe SSD | Quectel 5G Global LTE |
| ESG608-24 | Passive Cooling | WiFi6/BT Module | 2TB NVMe SSD | Quectel 5G Global LTE |
| Cables/Accessories | |
|---|---|
| Part Number | Description |
| MSG110 | Polaris Power Cable Assembly |
