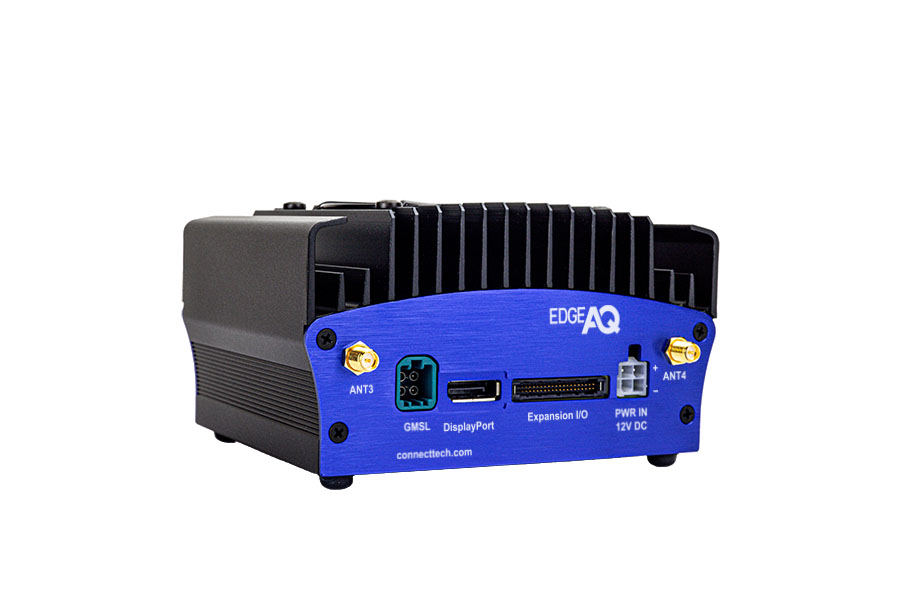

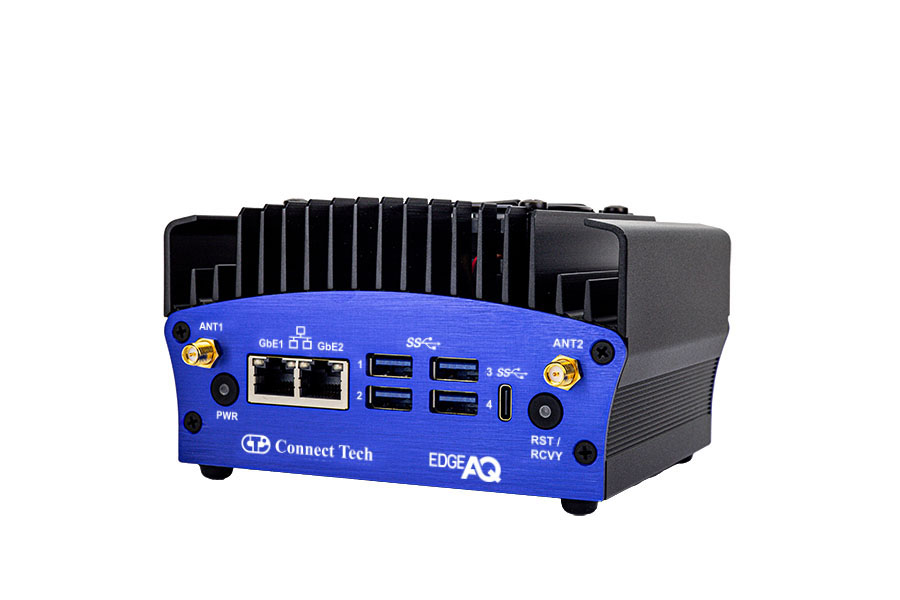

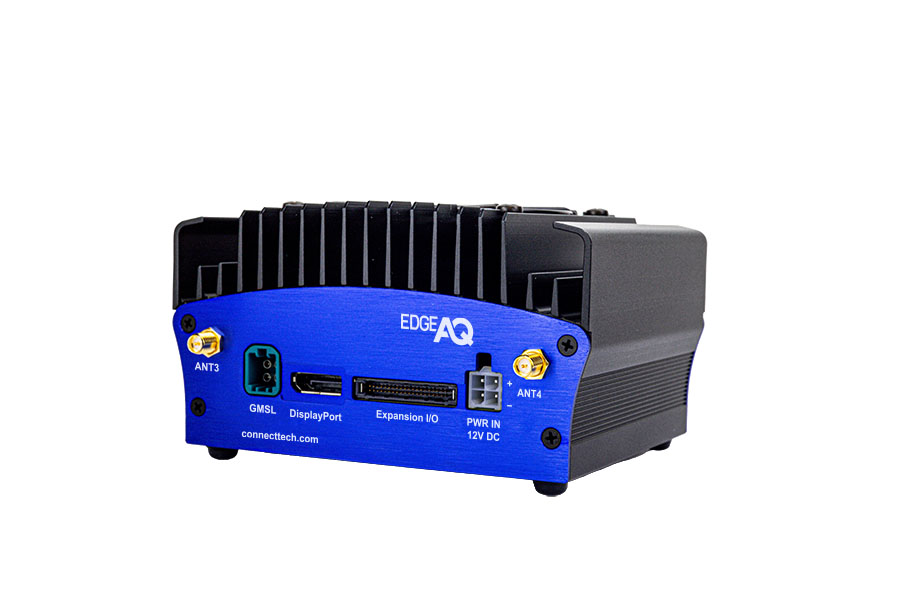

EdgeAQ Edge AI System
More Information
Connect Tech’s EdgeAQ is a complete Edge AI System equipped with the Toradex Aquila TI AM69 SoM. EdgeAQ delivers state-of-the-art AI and machine learning performance.
With four GMSL2 camera inputs, EdgeAQ enables high-bandwidth, real-time video capture for demanding computer vision applications. Its compact design ensures reliable operation in challenging environments, making it ideal for edge deployments where performance and durability are critical.
Pre-integrated with Toradex’s highest-performing SoM, EdgeAQ is a compact, high-performance Edge AI platform for vision processing and real-time AI.
Specifications
| Compatibility | Pre-integrated with Toradex Aquila TI AM69 |
|---|---|
| AI Performance | 32 TOPS |
| GPU | IMG BXS-4-64 |
| CPU | Up to 8x Arm Cortex™-A72 |
| Memory | Up to 32GB LPDDR4 (128 Bit) |
| Dimensions | 136mm (w) x 75mm (h) x 109mm (d) |
| Video Encode | H.264/AVC and H.265/HEVC |
| Video Decode | H.264/AVC and H.265/HEVC |
| WiFi/Bluetooth | 2.4/5/6 GHz Tri-band 2×2 Wi-Fi 7 (802.11be) |
| Networking | 2x 10/100/1000 BASE-T Ethernet |
| Display Output | 1 x Display Port 1.4 |
| USB | 4 x USB 5Gbps (Type-A) |
| GMSL Camera Inputs | 4x GMSL2 Camera Input via on-board 3x Quad Lane MIPI CSI-2 on the AM69 |
| Storage | Up to 256GB eMMC |
| Storage Expansion | 1 x NVMe Expansion (M.2 M-Key PCIe x2, 2242) |
| Wireless / Misc Expansion | 1 x M.2 B-Key (USB 3.0/2.0, 3042) |
| MISC / IO Connector | 2x UART 3.3V (1x console debug), 1x RS-422, 2x I2C 3.3V, 1x SPI 3.3V, 4x GPIO 3.3V (2x IN and 2x OUT), 2x 5V Output, 2x 3V3 Output, 1x HW Camera Trigger |
| CAN | 2x CAN 2.0b Port |
| Input Power | +12V DC Input |
| Operating Temperature | TBD |
| Weight | Actively Cooled System (ESG202-02): 944g (2.08 lb) |
| Warranty and Support | 1 Year Warranty and Free Support |
Ordering Information
| Main Products | |
|---|---|
| Part Number | Description |
| ESG202 | EdgeAQ Edge AI System with Toradex Aquila TI AM69 |
| Included Cables | |
| Part Number | Description |
| CBG408 | Power Input Cable, Quantity 1 |
| CBG629 / SFSD-20-28C-G-12.00-SR | MISC IO Breakout Cable (Flying Leads), Quantity 1 |
| Optional Accessories | |
| Part Number | Description |
| MSG098 | AC/DC Power Supply 200W w/ 4-pin Molex Mini-Fit Jr. Plug |
| CBG341 | Quad FAKRA GMSL1/2 Cable |
| MSG067 | Mounting Brackets |
| MSG093 | WiFi/BT Antenna |
