- SOSA-aligned 3U / 1-slot VPX chassis
- Compact and rugged design

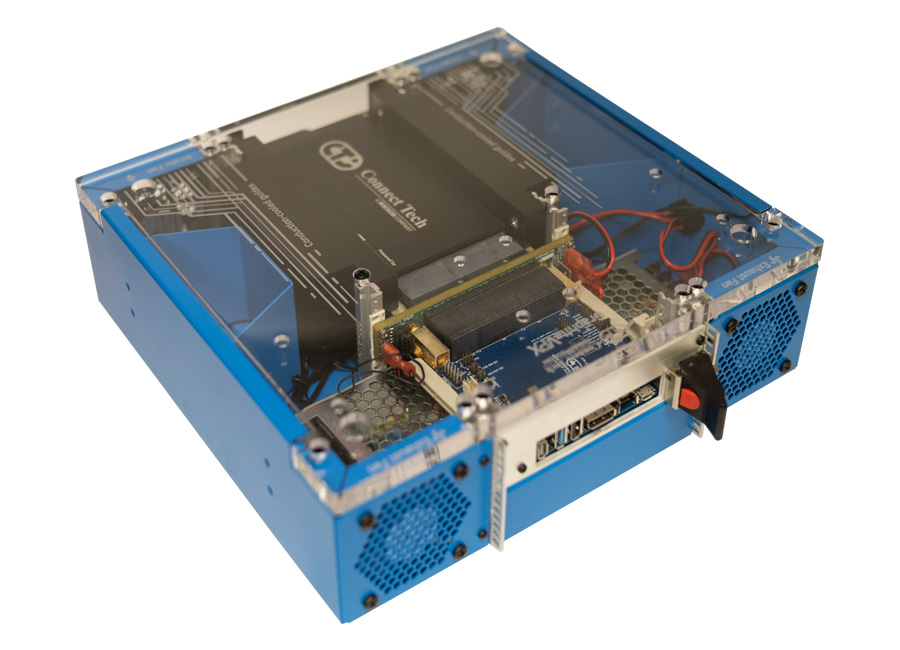

- Rear Transition Module (RTM) with full I/O access
- Flexible deployment as a standalone or stackable system
- Four-fan active cooling with variable speed control via wireless remote
- Single-slot backplane with RT3 connectors supporting 12V & 3V3_AUX

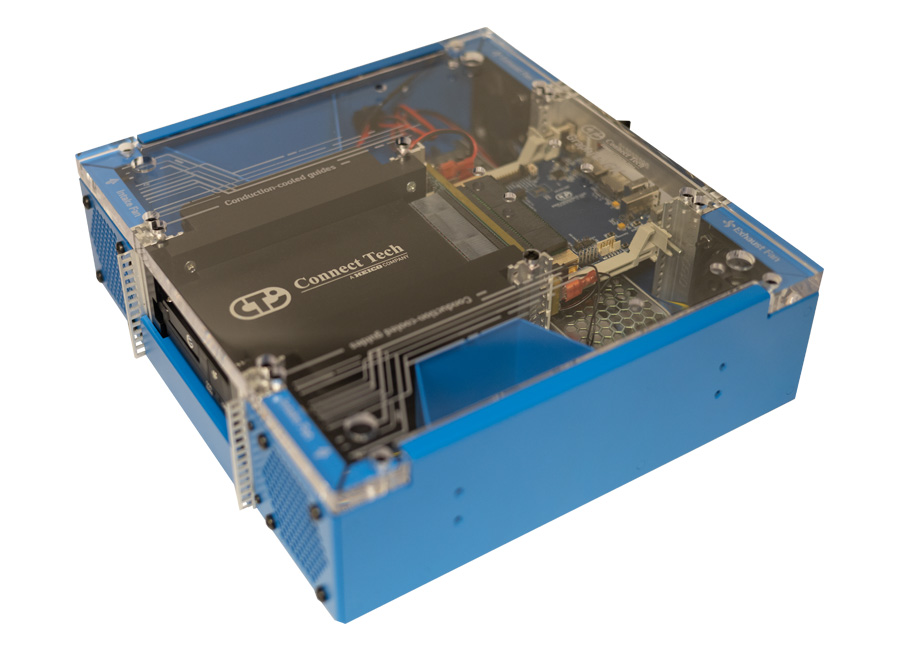

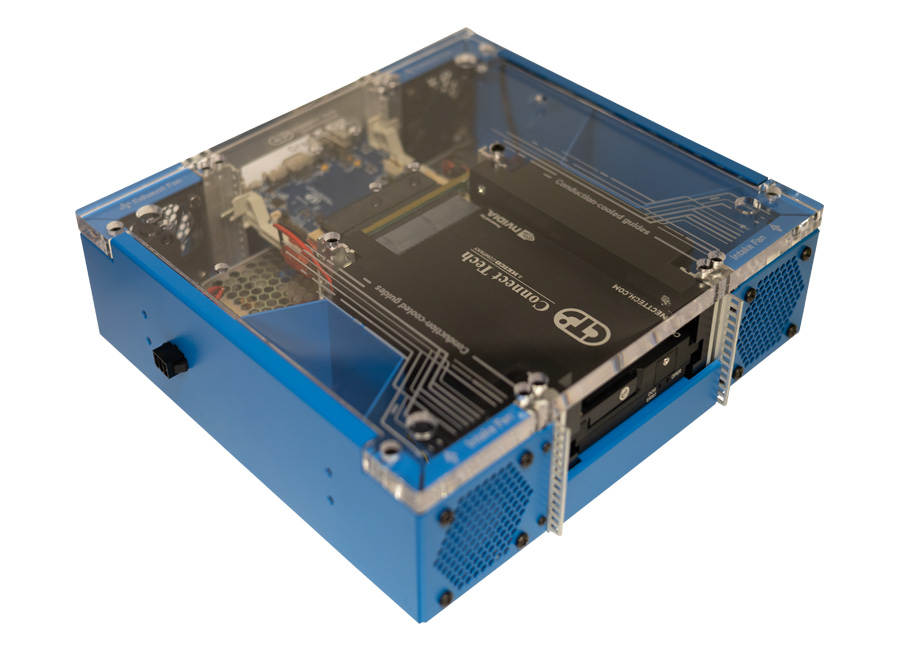

VPX Development System
More Information
The VPX Development System enables development on Connect Tech’s field-deployable VPX line of 3U SOSA-aligned modules. Fully stackable, the system is designed to enable single or interconnected modules for scalable system development. Active cooling is provided by four variable-speed and remote-controlled fans.
By allowing for development on the rugged Graphite VPX, powered by the NVIDIA Jetson AGX Orin, the system accelerates time to market, single-source development, and ease of access to the same hardware certified for the field.
Specifications
| NVIDIA GPU SoC Module Compatibility | NVIDIA® Jetson AGX Orin™ Industrial |
|---|---|
| Interface | 14.2.16 IO Intensive Slot Profile |
| IPMC | Tier 1, 2 and 3 support |
| Data Plane Expansion Plane | Root Port and End Point Support |
| Networking | 1x 10GBase-KR (SAMTEC ARC) |
| Display Output | 1x DisplayPort |
| USB | 1x USB 2.0 (Type A) |
| Storage | 2TB (Other storage options available) |
| UART/Serial | 1x USB console port (micro USB) |
| Misc/IO | 4x GPIO |
| Input Power | +12V, +3V3AUX |
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Chassis Specifications | • Powder-coated steel chassis with aluminum conduction-cooled card guides and acrylic top panel |
| Warranty and Support | 1 Year Warranty and Free Technical Support |
Ordering Information
| Main Products | |
|---|---|
| Part Number | Description |
| VDC001-01 | SOSA-aligned 3U / 1-slot VPX Development Chassis: Includes VPG004-01 and RTG005 fully integrated |
