- 3U VPX SOSA aligned
- TSN/IEEE 1588 PTP synchronization support
- 7x 10G KR Ethernet
- 6x PCIe Gen 4 Ports (x4 each)
- 2x 10G SFP+ Ports
- IPMC Tier 1-3 Support
Graphite VPX 10G
More Information

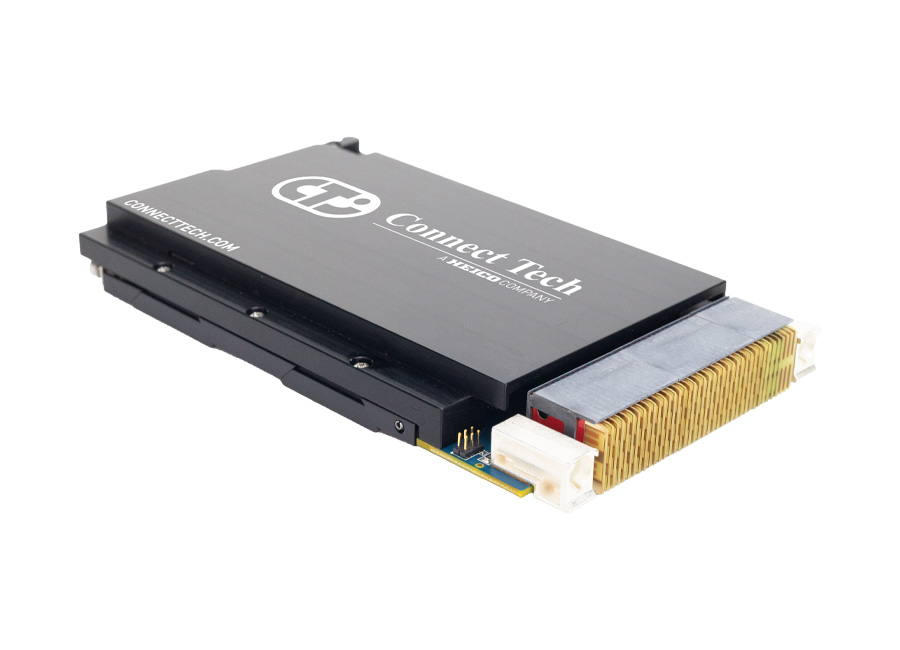

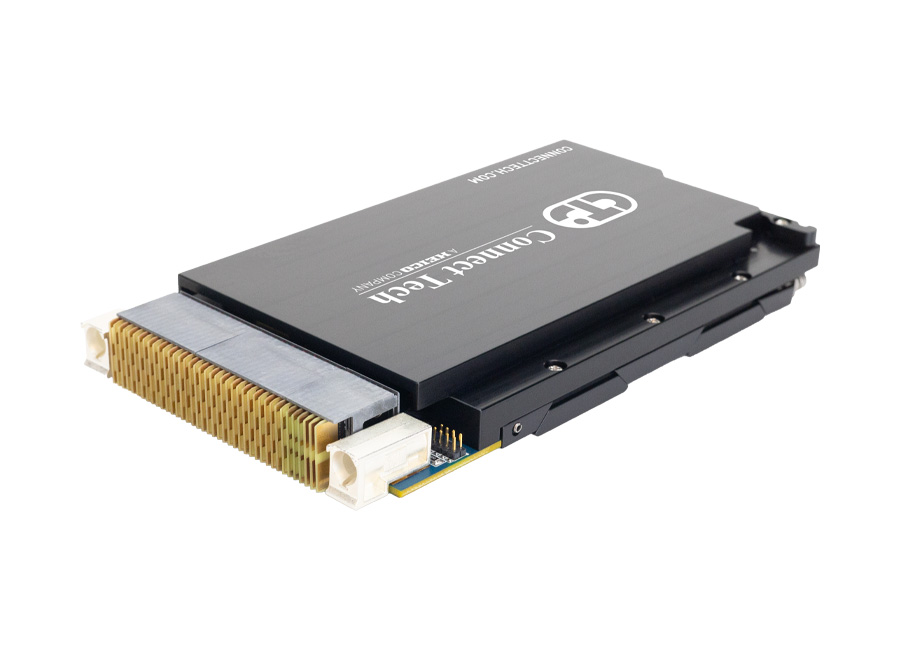

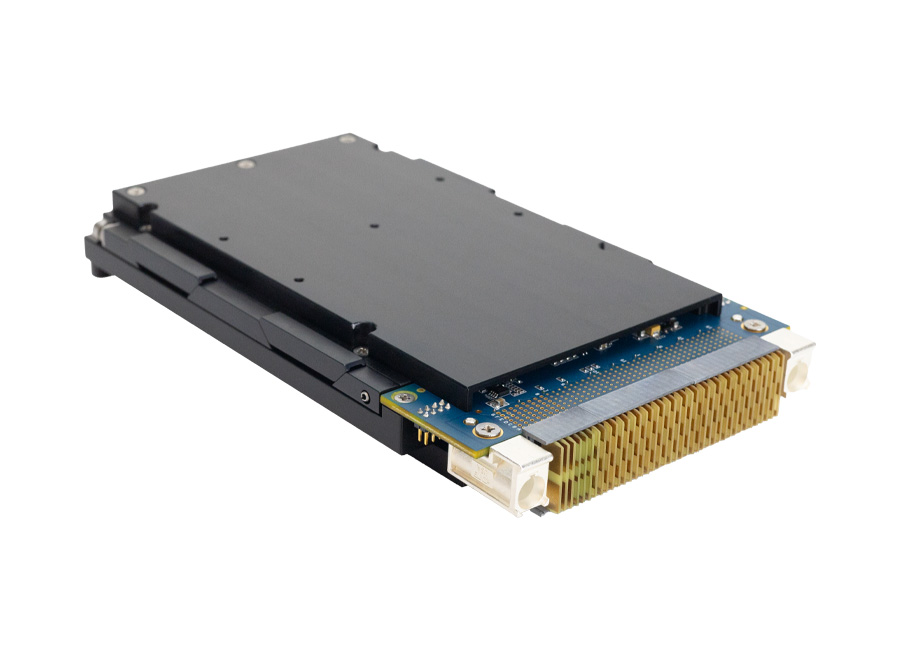

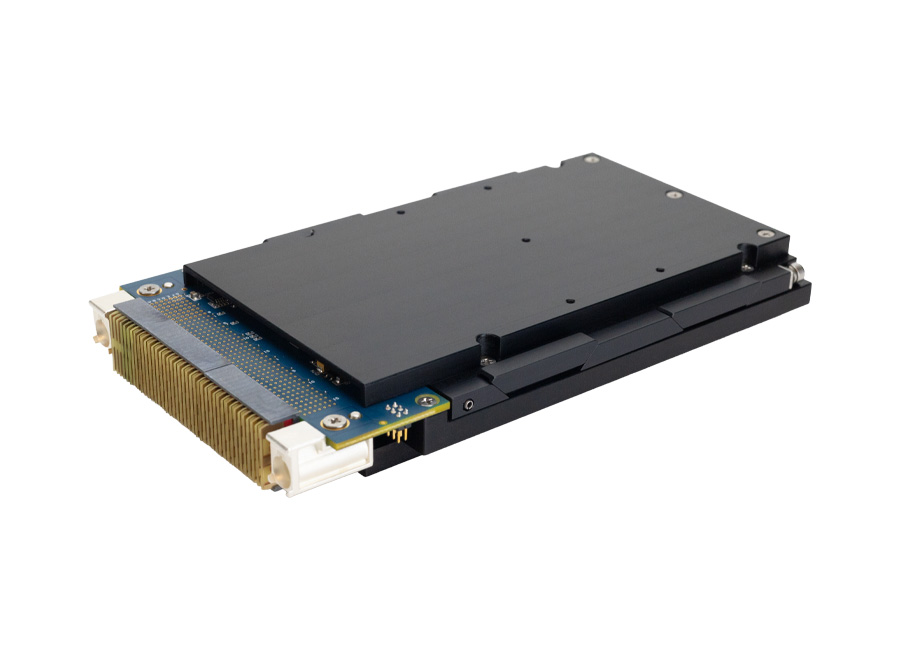

Graphite VPX 10G is a SOSA-aligned 3U VPX PCIe and 10 Gb Ethernet switch family, built for the demands of modern aerospace and defense systems. Featuring high-performance PCIe and Ethernet switching, they deliver fast, reliable data flow across compute-intensive platforms.
Designed in alignment with the SOSA Technical Standard, the Graphite VPX 10G family ensures open, interoperable system design while reducing integration complexity and lifecycle cost. 14.4.14 and 14.4.15 backplane configurations are available to fit a variety of end application configurations.
Specifications
| Switch | GBE Switch – Microchip SparX-5 Family VSC7558TSN |
|---|---|
| VPX Compatibility | • SOSA Aligned 3U VPX Switch |
| System Management | VITA 46.11-2022 Tier-3 |
| Data Plane | 6FP Fanning out PCIe (x4 each FP) |
| Control Plane | 7UTP Fanning out 7x 10GBase-KR Ethernet |
| Front Ports | 2x 10G SFP+ ports |
| Maintenance Ports | • 2x Maintenance UARTs |
| Mechanical Details | Conduction cooled |
| Input Power/ Misc Power Details | SOSA aligned power rail usage: |
| Warranty and Support | 1 Year Warranty and Free Technical Support |
Ordering Information
| Main Products | |
|---|---|
| Part Number | Description |
| VPG205 | Graphite VPX 10G Ethernet Switch – 14.4.14 backplane |
| RTG006 | VPX Rear Transition Module (RTM) for VPG205 |
| VPG206 | Graphite VPX 10G/PCIe Ethernet Switch – 14.4.15 backplane |
| RTG008 | VPX Rear Transition Module (RTM) for VPG206 |
Custom Design
Looking for a customized VPX product? Click here to tell us what you need.
